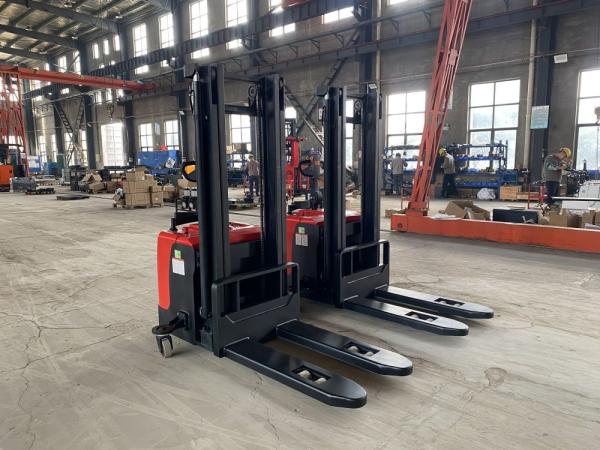

    Fully Automatic Electric Pallet Stacker Forklift Truck Rated Capacity 3000 KGS Lifting Height 3000mm

    Ask Lasest Price
    Brand Name : YONGJIELI
    Model Number : CDD30
    Certification : CE
    Price : USD2470.00 - USD4700.00
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 10 WORK DAYS
    • Product Details
    • Company Profile

    Fully Automatic Electric Pallet Stacker Forklift Truck Rated Capacity 3000 KGS Lifting Height 3000mm

    More Specification :

    • Double oil cylinders, wide view mast
    • American CURTIS brand drive control system
    • Multifunctional integrated handle
    • Electronic steering, portable
    • Germany Bucher brand low noise hydraulic pump
    • AC drive, brushless, motor maintenance free
    • Electromagnetic and regenerative braking system
    • Lifting limit and long-life inductive switch
    • Body damping system, pedal and handle damping
    ModelCDD15-30CDD25-30
    Power typeElectric
    Operation modeStand-on type
    Rated loadkg1500/30002500/3000
    Load center distancemm500
    Tire type (front/ rear)Polyurethane
    Number of tires4/1X+2
    Mast typeDuplex mast
    Standard lifting heightmm3000
    Free lifting heightmm0
    Height of mast closedmm2000
    Height of mast openmm3490
    Min. ground clearance of forkmm90
    Overall length pedal (deployment/ retraction)mm2515/ 22152525/2265
    Wheelbasemm1390
    Overall widthmm850850/12300
    Track width (front/ rear)mm490/604505/1100
    Fork specificationsmm1150*190*651150*205*65
    Fork side outer distancemm685/ 560715
    Turning radius pedal deployment/ retractionmm2125/17152125/1720
    Travel speed (full load/ no load)km/h4.8/5.04.0/5.0
    Lifting speed (full load/ no load)mm/s100/15080/125
    Descent speed (full load/ no load)mm/s150/105160/105
    Gradient (full load/ no load)%6/ 85/ 8
