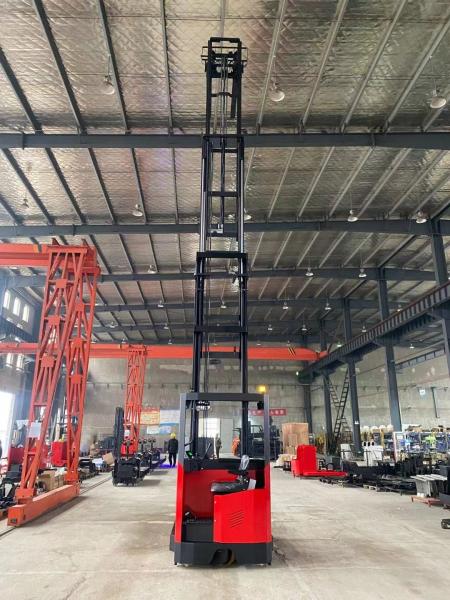

    Top Lift Level 12000 M Duty Electric Sit-on Reach Electric Forklift Pallet

    Ask Lasest Price
    Brand Name : YONGJIELI
    Model Number : CDD
    Certification : CE
    Price : $6000.00-$7000.00
    Payment Terms : L/C, T/T, D/A, D/P, Western Union
    Supply Ability : 50 SETS PER MONTH
    Delivery Time : 10 WORK DAYS
    • Product Details
    • Company Profile

    Top Lift Level 12000 M Duty Electric Sit-on Reach Electric Forklift Pallet

    More Specification :


    • Forward moving forklift mounted
    • Rated load capacity: 2000kg
    • Lifting height: 12000mm
    • Fork length: 1070mm
    • Battery capacity: 48V500AH
    • Three section fully free gantry
    • Fork tilt forward and tilt backward
    • Wireless camera monitor
    • Electronic steering side pull battery structure

    Advantage:

    • Double oil cylinders, wide view mast
    • American CURTIS brand drive control system
    • Multifunctional integrated handle
    • Electronic steering, portable
    • Germany Bucher brand low noise hydraulic pump
    • AC drive, brushless, motor maintenance free
    • Electromagnetic and regenerative braking system
    • Lifting limit and long-life inductive switch
    • Body damping system, pedal and handle damping

    Safety:

    • Curve automatic deceleration device
    • Drive stepless speed regulation
    • Controller multiple brake protection system
    • Emergency braking device
    • Cylinder safety shut-off valve
    • Blue light warning
    ModelCDD10BCDD15B
    Power typeBattery
    Operation modeStanding type
    Rated loadkg10001500
    Load center distancemm500
    Installation level and form2A2A
    Tire typePolyurethane
    Tire specification (front wheel)mmΦ210*85
    Tire specification (drive wheel)mmΦ230*75
    Tire specification (multidirectional wheel)mmΦ130*55
    Number of tires (front/ rear) (X= drive wheel)2/1X+2
    Mast typeDuplex mast
    Mast tilt angle (forward tilt/ backward tilt) (optional)°3/5
    Standard lifting heightmm2500
    Free lifting heightmm/
    Height of mast closedmm1830
    Height of mast open (incl. blocking rack)mm3485
    Min. ground clearancemm70
    Overall length (pedal deployment/ retraction)mm3200/26953300/2795
    Wheelbasemm12001300
    Front overhang distancemm145
    Overall width (front/ rear)mm990/ 900
    Track width (front/ rear)mm895/ 684
    Fork specificationsmm1070*100*35
    Outside distance of forkmm240-700
    Channel width (1000*1200 tray) (pedal unfold/ fold)mm3420/ 30003510/ 3095
    Turning radius (pedal unfold/ fold)mm1920/ 15002010/ 1595
    Walking speed (full load/ no load)km/h4.0/5.0
    Lifting speed (full load/ no load)mm/s80/15077/150
    Descent speed (full load/ no load)mm/s160/105200/105
    Climbing gradient (S2-5) (full load/ no load)%6/85/8
    Drive motor powerkw1.5
    Lifting motor powerkw2.23
    Battery (voltage/ capacity)v/ah24/210
    Battery weightkg200
    Vehicle weight (incl. battery)kg18151885
    Steering typeElectronic steering
    Parking brake typeElectromagnetic braking
    Battery replacement methodLifting type
